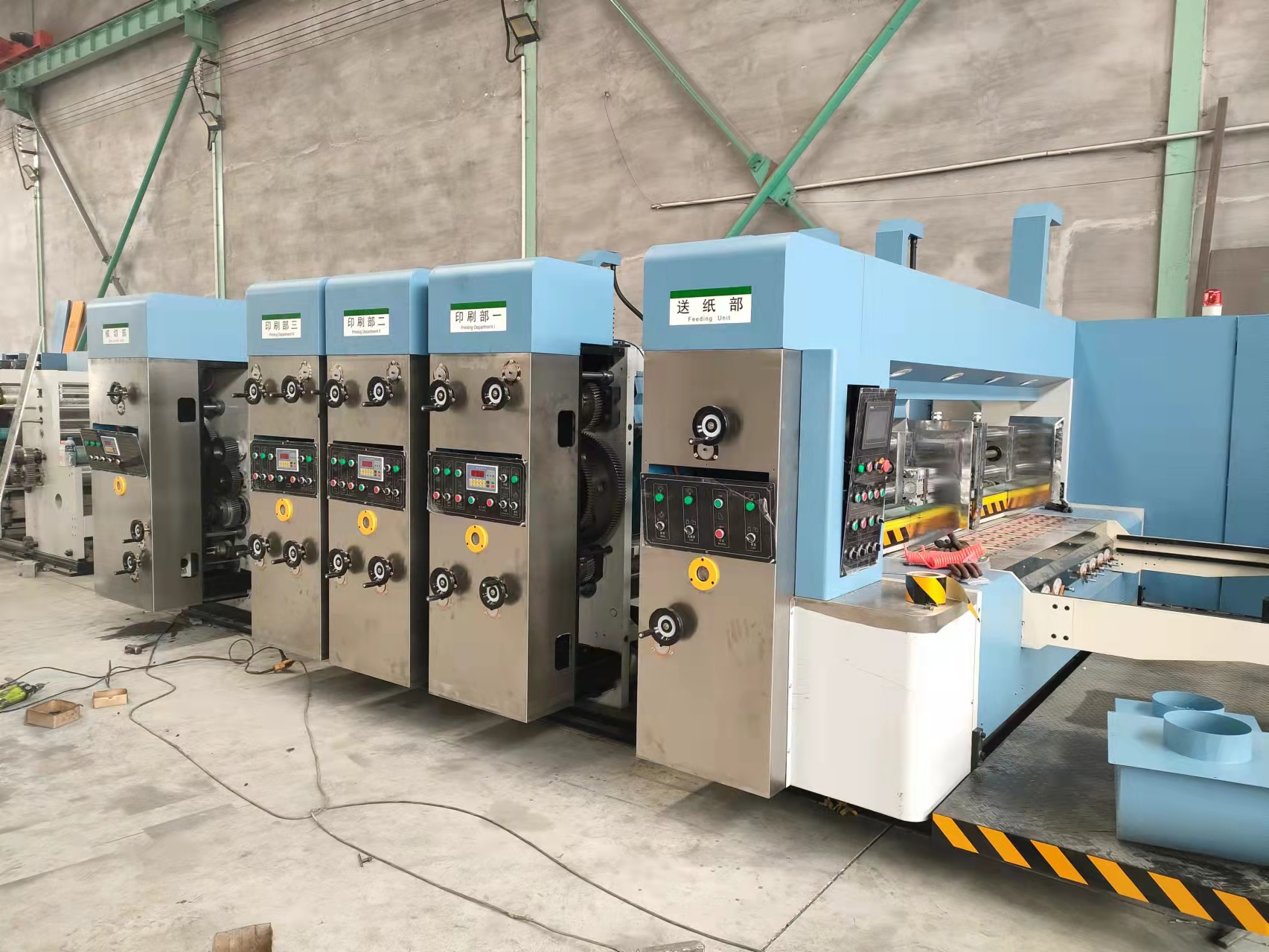

2022 Automatic high speed corrugated 4 color printer slotter and
die cutter machine
| unit | GS-1224 |
| Plate roller dia | mm | 405 |
| Plate roller length | mm | 2420 |
| Inner width of machine | mm | 2850 |
| max speed | Ps/min | 140-160 |
| economic speed | Ps/min | 120 |
| max printing size | Mm | 1200×2400 |
| max feeding paper size | Mm | 1270×2600 |
| skip feed paper size | Mm | 1500×2600 |
| min feeding paper size | Mm | 320×720 |
| board thickness | Mm | 2/3-10mm |
| machine frame thickness | Mm | 60mm |
| topping precision | Mm | ≤±:0.35 |
| slotting precision | Mm | ≤±:1.2 |
| die cutting precision | Mm | ≤±:1.5 |
| main motor power | KW | 37 |
| max slotting depth | Mm | 300 |
| min slotting distance | Mm | 120 |
Machine Features
1.This machine is designed and produced based on high qualilty,
high speed, high efficiency, reliability and safety, with the
advantages of quickly changing order and easy operation.
2.Adapting imported PLC with touch screen control. It can save
order, and accelerate the changing order speed.
3.Adopt high quality material and assembly part.
4.All cylinders and rollers are chrome plated for ideal hardness
5.Transmission gears from precision grinded alloy steel and with
spraying type circulating lubrication system.
6.Use expansion sets tight link to reduce abrasion of the shaft,
keep high precisionof th machine with long time.
7.Adopt hanging structure, auto reset, quick changing order
8.Each unit is equipped with Emergency Stop switch to ensure safety
operation.
9.Using Self Locking gap adjustment device for easy operation.
10.Electric element, bearing, and pneumatic element all use
international famous brand.
Lead edge feeder unit
1.Lead edge feeder system, inverter adjust air volume, feeding in
precision and steady.
2.Double feeding roller model, quick replacement mechanism for the
first feeding rubber roller, with spring adjustment function, it
can prevent distortion and to ensure accurate feeding ofcardboard.
3.Brushes and suction device remove dust from board surface.
4.Touch screen displays production speed and quantity.
5.Adjust the feed interval by manual
Printing unit
1.Both printing cylinder and impression cylinder anre made of high
quality steel with grounding surface and chrome plated. Dynamic and
static balance correction ensure to run stability.
2.Adopt hanging structure, convenience and fast to set up.
3.Installing san uninstalling printing plate with pedal swithc or
operation panel to control forward and reverse
4.To match with feeding unit the machine with automatic lift
anilox, when the feeding unit runs, the anilox roller goes down to
contact with printing plate, while, on contract, leave printing
plate
5.Phase position utilizing electromagnetic cluth locking device,
with intelligent zeroing function and can reset in dynamic and
static condition.
6.Printing phase adopt PLC touch screen and 360 degree electric
ajustment.
7.Pull roller quick lateral moving mechanism, self-locking gap
adjustment device.
Rotary die cutting unit
1.Die cut unit roller adopt high quality steel, plated with rigid
chrome. High precision dynamic and static balance increase running
stable.
2.Mould roller and rubber roller can auto separate by cylinder
eccentric device when the machine do not die cut, this can lighten
machine load
and increase rubber roller and die knife life.
3.Matching with feeding system, it with auto up and down device,
the rubber roller will down when feeding paper. The rubber roller
will up when stop feeding paper, To make sure every paper die cut
correctly.
4.The mechanical transmission rubber roller move 58mm in left and
right side, It also with wear and tear regular could increase the
life of rubber roller
5.Die cut phase adopt PLC touch screen, 360 degree adjust electirc
number Machine with rubber amend device, the rubber roller can be
used after many times amend.
