    Corrugated Flexo Printing Slotting Die Cutting Machine 2 3 4 Color Cardboard Box

    Ask Lasest Price
    Brand Name : DA HUA
    Model Number : 405,480
    Certification : CE,ISO,SGS
    Price : USD 19900 - USD60000 per set
    Payment Terms : T/T, L/C, D/P, Western Union, MoneyGram
    Supply Ability : 15 sets per month
    Delivery Time : 30-50 days
    • Product Details
    • Company Profile

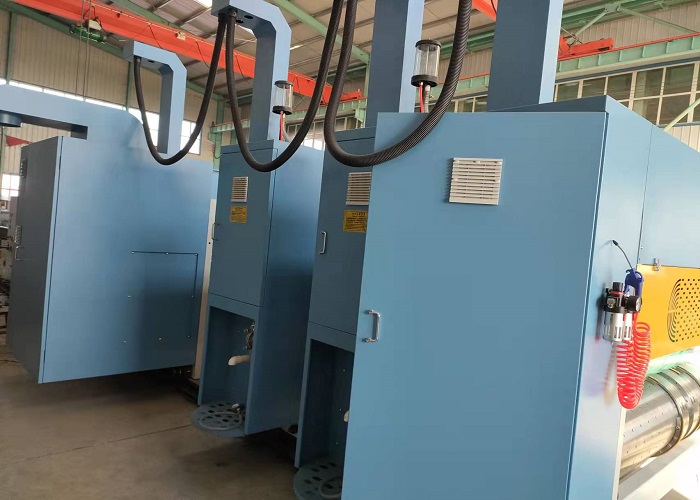

    Corrugated Flexo Printing Slotting Die Cutting Machine 2 3 4 Color Cardboard Box


    Flexo corrugated cardboard 2 3 4 color printing slotting die-cutting machine / Cardboard box printer slotter die cutter


    1.The lead edge feeder adopts the high quality cam mechanism control so that curved cardboard can be accurately transmitted.

    2.Frequency converter control main motor safer and more energy saving.

    3.Repeated orders can be stored and recalled by PLC control, easy and fast to set-up orders, and more convenient to operate. Dedicated computer control desk is provided.

    4.The machine is also equipped with an automatic lubrication system that keeps the lubricant levels in all of units uniform at all times.

    5.With the function of automatic locking , convenient and fast.

    6. All units of the machine can be separated automatically or manually, and an audible alarm sounds during the opening and closing for safe operation.


    7.All gears train have been quenched with high frequency and elaborate milling.

    8.All gears and shaft with expansion sleeve type keyless connection mechanism, to avoid central wear, so that the printing machine can maintain a long life overprinter accuracy.


    Model
    405
    480
    Speed
    180/min.
    160/min.
    Max. Feeding size
    1200*2200/2400/2600mm
    1400*2400/2600/2800mm
    Min.feeding size
    350*680mm
    380*680mm
    Max.printing size
    1200*2000/2200/2400mm
    1400*2200/2400/2600mm
    Max.die cutting size
    1200*2150/2350/2550mm
    1400*2350/2550/2750mm
    Standard printing plate
    4-9mm
    4-9mm
    Corrugated board
    2-12mm
    2-12mm
