Water Ink Printing Slotting Corrugated Box Printing Machine 5 Colors

    Buy cheap Water Ink Printing Slotting Corrugated Box Printing Machine 5 Colors from wholesalers

    Buy cheap Water Ink Printing Slotting Corrugated Box Printing Machine 5 Colors from wholesalers
    • Buy cheap Water Ink Printing Slotting Corrugated Box Printing Machine 5 Colors from wholesalers

    Water Ink Printing Slotting Corrugated Box Printing Machine 5 Colors

    Ask Lasest Price
    Brand Name : Dahua
    Model Number : ZYKM-405,480,530 series
    Certification : CE,ISO
    Price : USD 10000 - 90000 per set
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P, D/A
    Supply Ability : 20 sets per month
    Delivery Time : 35 - 60 days
    • Product Details
    • Company Profile

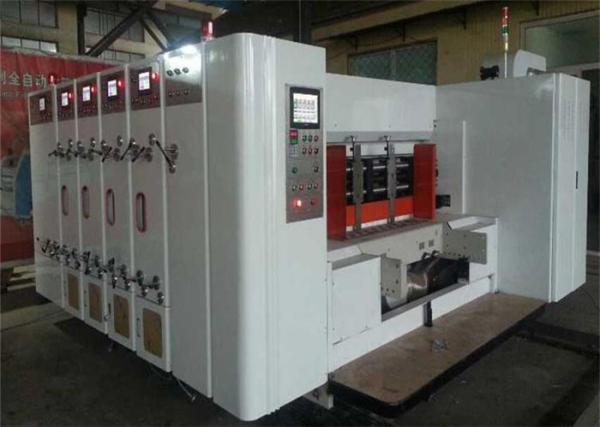

    Water Ink Printing Slotting Corrugated Box Printing Machine 5 Colors

    1-5 colors water ink printing slotting corrugated cardboard box making machine


    PLC touch screen control, including automatic counting, speed, number display, interval sheet, alarm light functions.
    High-quality materials and accessories are selected. All drive rollers are made of high-quality steel, which has been
    calibrated for dynamic and static balance, and is polished and polished by hard chrome plating.
    The main transmission gear is made of 20GrMnTi high-quality alloy steel forging, quenching and tempering, frequency
    modulation quenching, high-precision gear grinding, high precision gear, strong wear resistance, stable and reliable
    transmission.


    Function and configuration


    No
    Item
    Function and configuration
    1
    Machine unit move
    l Motorized control machine units move, the warming belt is alarming when moving, make sure working safety.
    l Drive shaft is equipped with friction clutch to avoid damage machine caused by incorrect operation.
    l When machine units separate, each brake system work automatically, make sure gear positioning accurately, fix printing phase,
    ensure gear engaged correct when machine units lock.
    l Machine unit adopts pneumatic locking system.
    l Main motor frequency conversion control, energy saving. Main motor with start protecting device, machine can not run when
    machine units aren’t lock.
    2
    Roller type lead edge feeder
    l Adopts lead edge feeder with wind volume system, it can adjust wind volume according on cardboard bending status to ensure
    feeding board smoothly.
    3
    Feeding roller
    l Top feed roller is made of high qualified steel, the outside be wrapped wear-resisting rubber, don’t destroy flute, guarantee
    feeding precision, improve the printing accuracy.
    l Bottom roller used high-quality steel, precision grinding, knurling, hard chrome plated paper roll hand mode rapid clearance of
    fine-tuning self-locking device, equipped with a dial display to adjust direction and numerical.
    5
    Baffles
    l The left and right baffles adopt electric digital control, the front baffles space adopts manual adjustment, the back baffle box
    be adjusted by motorized.
    7
    Automatic zero device
    l After finishing the work order ,back to zero position

    Slotting unit


    Slotting with die cutting unit combined
