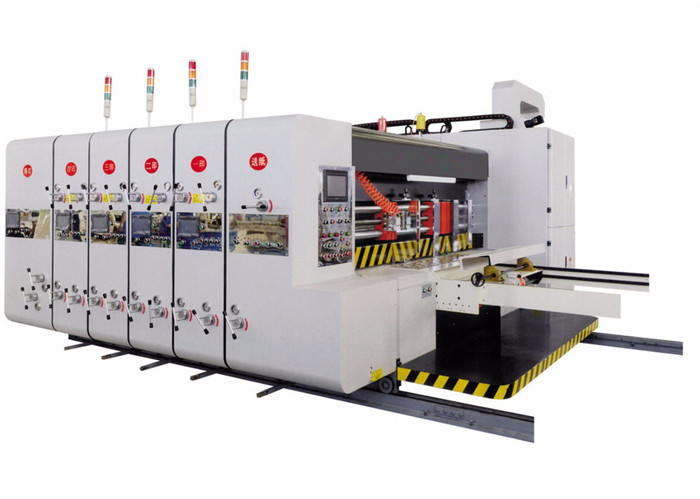

    Paperboard Carton Flexo Printer Slotter Rotary Die Cutter Machine

    Ask Lasest Price
    Brand Name : Dahua
    Model Number : GYKM series
    Certification : CE,ISO,SGS
    Price : USD 30000 - 150000 per set
    Payment Terms : T/T, L/C, D/P, Western Union, MoneyGram
    Supply Ability : 30 sets per month
    Delivery Time : 35 - 60 days
    • Product Details
    • Company Profile

    Paperboard Carton Flexo Printer Slotter Rotary Die Cutter Machine

    paperboard carton flexo printer slotter rotary die cutter machine


    Performance and Characteristics
    1. The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.
    2. Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
    3. All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
    4. Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
    5. The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
    6. The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
    7. Phase adjustment adopt PLC control with touch screen.
    8. The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.
    9. Main motor is VFD, working stability, low power consumption.

    Model920122414261628
    Max.feeding size(mm)900×21001200×25001400 ×27001600x2900
    Max.printing size(mm)900×20001200×24001400 ×26001600x2800
    Skip feeding size(mm)1100×21001400×25001600 ×27001800x2900

    Min.feeding size

    positive knife(mm)

    negative knife (mm)


    300×640
    300×720


    350×720
    350×740


    400×720
    400 ×740


    450×720
    450 ×740


    Max speed(sheet/min)

    150150150150

    Working speed(sheet/min)

    80-13080-13080-13080-130

    Max.slotting depth

    7 ×2207×3007×3507x400
    increase the blade, increase the slot depth

    Number of Colors for Printing

    1 color, 2 colors, 3 colors, 4 colors, 5 colors,6 colors,pls select the numbers of colors for printing at the time of inquiring
