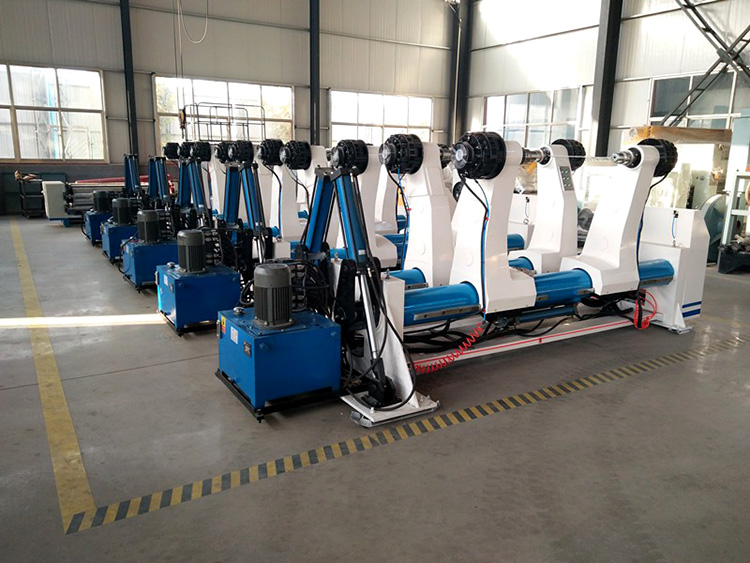

    Paper Mills Shaftless Hydraulic Mill Roll Stand For Paper Roll

    Ask Lasest Price
    Brand Name : Dahua
    Model Number : YZJ-1400,1600,1800,2000,2200,2500
    Certification : CE,ISO
    Price : USD 8000- 12000 per set
    Payment Terms : T/T, L/C, D/P, Western Union, MoneyGram, D/A
    Supply Ability : 300 sets per year
    Delivery Time : 15-25 days
    • Product Details
    • Company Profile

    Paper Mills Shaftless Hydraulic Mill Roll Stand For Paper Roll

    Corrugated Paper 1400mm Shaftless Hydraulic Mill Roll Stand


    • Expiry width:800-2200mm,clamp paper diameter: Max:1500mm,Min:350mm
    • Single arm max load weight: 3ton
    • Symmetrical structure may also install two original paper, tube bundle is kept for paper assignments.
    • Adopts hydraulic drive, can complete base paper lifting, clamping, loosen, move on.
    • Adopt pneumatic tension adjust base paper tension and automatically bulge style chuck.
    • Tension control equipped with pneumatic brake,also can connect with automatic paper splicer to achieve quick paper supply.
    Name of main partsBrands or place of originmaterial
    Main shaftTanggang productiondiameter 219mm
    Swing armSelf productionResin sand gray iron HT200
    wallboardJigang productionQ235A Welding parts
    bearingHRB,ZWZ,LYC
    expand chuckChangzhou3,4inch shared
    Main electrical applianceChit
