    Single Face 2 Ply 100m/Min Corrugated Board Production Line ISO

    Ask Lasest Price
    Brand Name : Dahua
    Model Number : SF-320
    Certification : CE,ISO
    Price : USD 18000 - 50000 per set
    Payment Terms : T/T, L/C, D/P, Western Union, MoneyGram
    Supply Ability : 30 sets per month
    Delivery Time : 25-40 days
    • Product Details
    • Company Profile

    Single Face 2 Ply 100m/Min Corrugated Board Production Line ISO

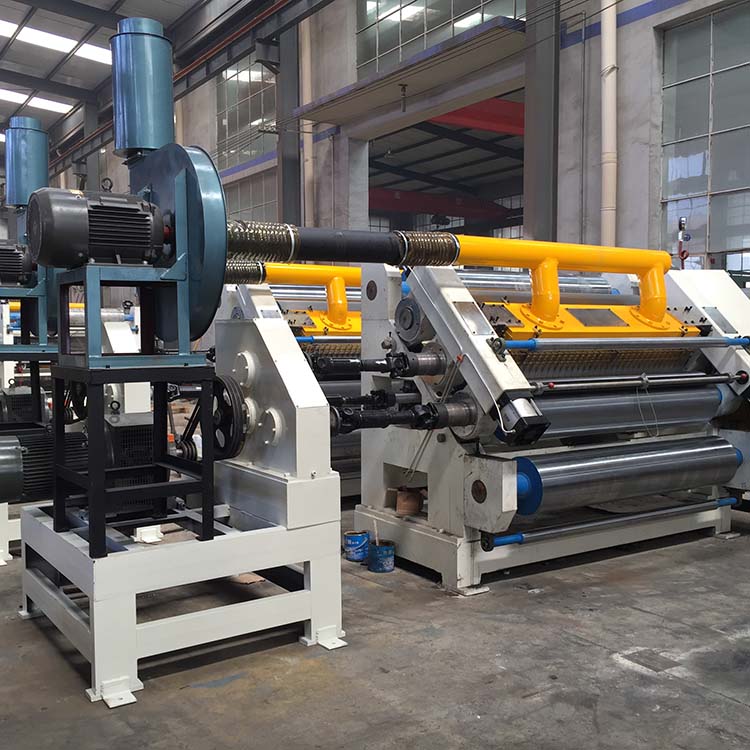

    Single Face 2 Ply 100m/Min Corrugated Board Production Line


    Main components parameters:

    1.Working width:1400-2200mm

    2.Main driving motor:7.5kw

    3.Belower motor:7.5kw

    4.Glue adjust motor:0.5kw

    5.The main corrugated roll diameter:320mm

    6.The pressure roller diameter:285mm 45# Seamless steel tube quenching process

    7.Glue roller diameter:219mm 45# Seamless steel tube surface specially reticulate hand-cut and

    chromium plating processing

    8.Glue Scraping roller:110mm 20# Seamless steel tube

    9.Preheater roller:280mm 20G

    Features:

    • 1. 270s design speed:100m/min
    • 320s design speed:120 m/min
    • 360s design speed:150m/min
    • 3.effective width:1400mm-2500mm
    • 4.corrugated roller : Ø 270 Ø 320 Ø360mm
    • 5.drive reduce box with oil immerse type lubricating to reduce noise keep running stable. adopt gimbal transmission . sepate power.(optional)
    • 6.corrugating roller, pressure roller and glue roller by pneumatic adjustment
    • 7.carboard transmit adopt vacuum suction method, with wind control system, keep flute profiles stable of the lpwer-roller in the condition of running up.
    • 8.bearing of corrugated and pressure roller adopt high temperature lubricate grease
    • 9.glue parts auto supply glue circularly
    • 10.the upper-lower corrugaing roller are made of 48 CrMo high quality alloy steel after heat-treatment. the hardness HRC 58-60 degree ,the surface be grinded.
    • 11.the glue part surface are treated by special mesh snicked and chromeplated.
    • 12.motorized or manual glue width dividing to match the paper width.
    • 13.glue part can be running independently or non-independently or non- independently while stoped.
