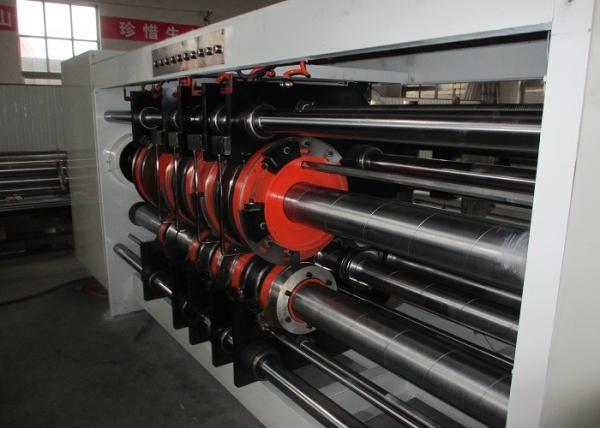

RS4 Rotary Slotter Machine With Creasing Corrugated Cardboard Box Manufacturing Machine

    Buy cheap RS4 Rotary Slotter Machine With Creasing Corrugated Cardboard Box Manufacturing Machine from wholesalers

    Buy cheap RS4 Rotary Slotter Machine With Creasing Corrugated Cardboard Box Manufacturing Machine from wholesalers
    • Buy cheap RS4 Rotary Slotter Machine With Creasing Corrugated Cardboard Box Manufacturing Machine from wholesalers

    RS4 Rotary Slotter Machine With Creasing Corrugated Cardboard Box Manufacturing Machine

    Ask Lasest Price
    Brand Name : Dahua
    Model Number : KCJ-2500,2600,2800
    Certification : CE,ISO,SGS
    Price : USD 16000 -22000 per set
    Payment Terms : T/T, L/C, D/P, Western Union, MoneyGram, D/A
    Supply Ability : 30 sets per month
    Delivery Time : 25-40 days
    • Product Details
    • Company Profile

    RS4 Rotary Slotter Machine With Creasing Corrugated Cardboard Box Manufacturing Machine

    RS4 Rotary Slotter Machine With Creasing Corrugated Cardboard Box Manufacturing Machine


    • This machine adopts the vacuum adsorption paper feeding style , can once complete slotting, corner cutting, side cutting, creasing and so on.
    • The power motor adopts frequency conversion motor, running smoothly and saving energy.
    • Electric side baffle, electric rear baffle.
    • The slotted phase is adjusted by the planetary gear structure and is adjusted by the electric digital 360 degree.
    • Spray lubrication, longer service life of gear transmission.
    • The gear transmission adopts no clearance adjustment design to improve the paper feeding accuracy.
    • Photoelectric counter.
    • electrical synchronous adjustable slotting knife and creasing wheels togther, easy to adjust, save time and labor.

    Parameter nameSpecification
    Reamer plate diameter405mm480mm530
    Style240025002000220024002600
    Max.board area (mm)1250x24001250x25001450x20001450x22001450x24001650x2600
    Min.board area (mm)300x600300x600340x600340x600340x600340x600
    Slot width (mm)7.07.07.07.07.07.0
    Suitable cardboard thickness2-11mm2-11mm2-11mm2-11mm2-11mm2-11mm
    Economic speed

    130

    pcs/min

    130

    pcs/min

    130

    pcs/min

    130

    pcs/min

    130

    pcs/min

    110-130

    pcs/min
