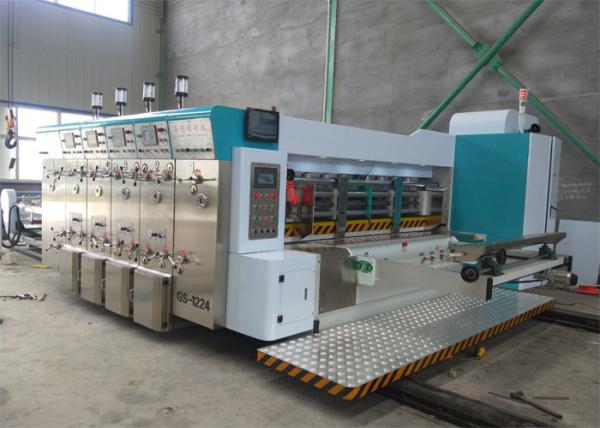

Corrugated Carton Box Making Flexo Printer Slotter Die Cutter Stacker Machine

It adopts vacuum adsorption paperboard feeding ,PLC touch screen control system.Man-machine conversation,

The main machine with frequency conversion motor.360 phase adjustment controlled by microcomputer,

Printing accruracy less than 0.5mm,it has many good characteristics high precision,high speed,operating easy and so on.

1.Computerized control,automatic adjustment.

2.Precise planet-geared phase adjustment device.

3.Anvil roll can be motorized adjust in circumferential & traversal;direction to prolong its usage life.

4.Quick change over rubber anvil,good wear-ability.

5.Speed difference compensation system make line speed be synchronization,it can ensure die-cutting precise.

6.Through repair anvil roll by special device,anvil roll can be product cost down.

Lead edge feeding unit

• 1. PLC Control Lead edge feeder, Frequency Converter Motor Quick react
• 2. Mechanical driving, feeding paper with high precision
• 3. Working speed and quantity digital display
• 4. Equipped with dust suck removing device to improve printing quality.

• 1. Quick change printing plate device.
• 2. The roller space adjustment adopt self locking structure.
• 3. The horizontal /phase adjustment of Printing plate adopt PLC and Electric 360 degree adjustment.
• 4. The phase fix device adopt cylinder brake.
• 5. Pneumatic diaphragm pump inking, automatic circle, automatic cleaning.
• 6. Cleaning printing plate memory function.
• 7. Anilox roller adopt pneumatic up/down device synchronous with feeder.

Rotary Die-cutting unit(Slotting combined)

• 1.Die cut unit roller adopt high quality steel, plated with rigid chrome. high precision dynamic and static balance increase running stable.
• 2.Mould roller and rubber roller can auto separate by cylinder eccentric device when the machine don’t die cut, this can lighten machine load and increase rubber roller and die knife life.
• 3.Matching with feeding system, it with auto up and down device, the rubber roller will down when feeding paper. The rubber roller will up when stop feeding paper. To make sure every paper die cut correctly.
• 4.The mechanical transmission rubber roller move 58mm in left and right side. It also with wear and tear regular could increase the life of rubber roller.
• 5.Die cut phase adopt PLC touch screen, 360 degree adjust electric number.
• 6.Machine with rubber amend device, the rubber roller can be used after many times amend.
• 7.Free die mould slotting unit, no need to make the die mould when making normal box, saving cost and improved efficiency. (optional )

Waste vibrator for optional (with side transport belt)
