Automatic Printer Slotter And Die-Cutter With Vibrator And Stacker Machine

Printing unit:

A. Printing drum and impression roller:

Adopt high quality and thick-walled seamless steel tube, surface grinding, plating hard chrome.

B. Anilox roller:

Adopt high quality steel 200/220/250 mesh combination from Dalin Tengda, can print more than 45 lines flexographic plate.

Diameter: Φ210mm

C. Rubber roller:

Adopt high quality wear-resistant, oil-resistant, acid and soda-resistant rubber from Jizhou Chunfeng, designing middle and high grinding

ink, transfer ink efficiently.

Diameter: Φ210mm

E. Printing plate roller pressure adjustment:

Adopt high speed printing machine transmission, adopt high accuracy cross slide block gapless adjustment to do find adjustment, enable

printing pressure get the best printing status.

F. 360°electric phase position:

Adopt CPU computer digital readout controlling device, input data directly based on error, adjust phase position automatically.

Printing phase position adjustment unit adopt planetary gear drive mechanism, 360°random adjustment while working.

Axial direction adjust by hands, adjustable distance is 30mm, while working or stopping.

G. Diaphragm pump supply ink automatically system:

Pneumatic lift plate, air push inking, equipped automatic ink balance system, avoid ink getting dry while machine stop or pause.

Return ink tube use 1.3 inch PVC tube, tube wall is smooth to avoid sticking and blocking ink, can drain ink to ink drum to avoid

leaking ink.

H. Pneumatic braking system:

Limit machine move when separate machine, keep gears position fixed.

I. Printing roller:

Technical parameters:

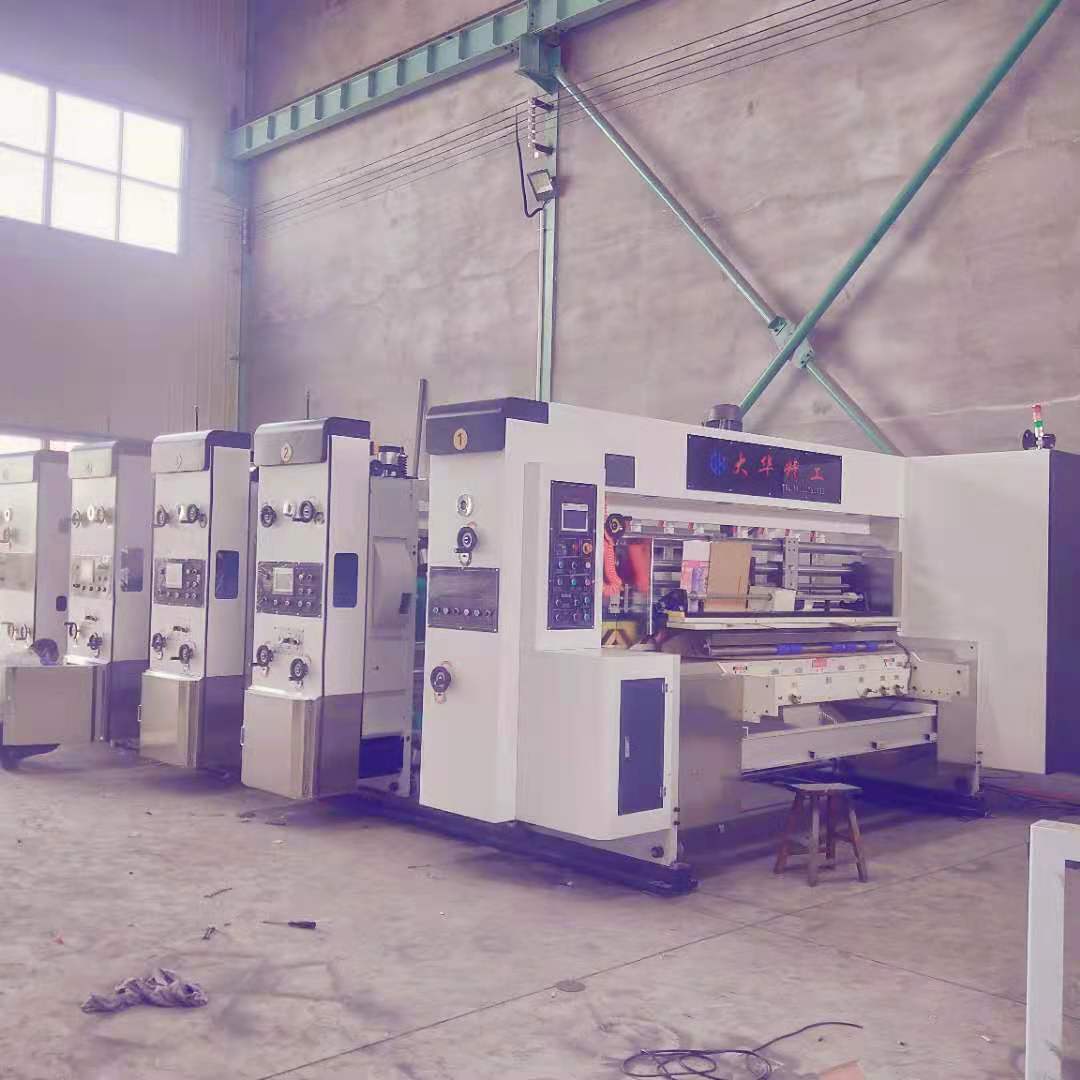

Machine photos
