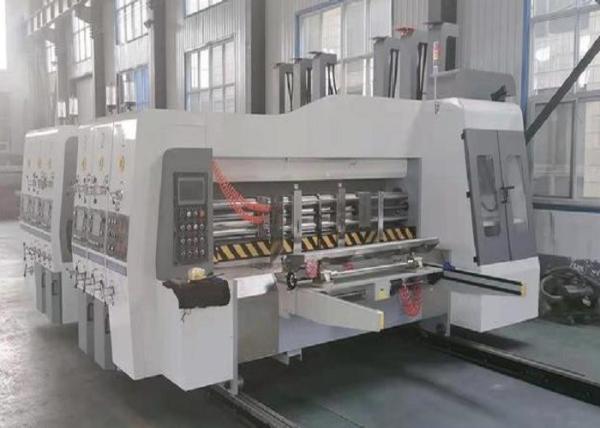

    220V 380V 60HZ Computerised Automatic Corrugated Box Making Machine

    Ask Lasest Price
    Brand Name : Dahua
    Model Number : GYKM1224
    Certification : CE,ISO,SGS
    Price : Negotiable
    Payment Terms : T/T, L/C, D/P, Western Union, MoneyGram, D/A
    Supply Ability : 20 sets per month
    Delivery Time : 30-50 days after deposit
    • Product Details
    • Company Profile

    220V 380V 60HZ Computerised Automatic Corrugated Box Making Machine

    220V / 380V / 415V / 440V 60HZ Computerised Automatic Corrugated Box Making Machine Long Life Time


    Suitable for common shape and Unregular carton box





    Function of slotting part:


    ◆With pre-creasing wheels for prevent the cardboard rupture while creasing.

    ◆Single roller with double knives slotting,the carton height adjustment adopt PLC and electric digital input mode.(optional:PLC with touch screen adjustment)

    ◆The phase of slotting adopt PLC and electric digital input 360°adjustment,accord the error to input the adjust digit,can be adjusted while the machine running or stop. (optional:PLC with touch screen adjustment)

    ◆The slotting knives seat and the line creasing wheels transversal movement adopt electric synchronous adjustment(optional:PLC touch screen adjustment,input the size of the carton directly into the touch screen,will be automatic adjusting).

    ◆ Creasing space and knife roller space adjustment adopt self-locking structure.

    ◆ The carton height adjustment have an anticollision device for the slotting knives,will not destroy the machine.

    ◆ An anticollision device is used while the slotting knife seat transversal movement.(electronic formula)

    ◆ The width of slotting knife is 7mm,adopt alloy steel material,by heat treatment and grinding,tooth-edge slotting knife and two-piece edge revise knives,are sharp edge,and high precision.

    ◆ The hole and handle tool as an option.



    • The rubber pad roller.
      ① .Rubber pad roller steel material, surface grinding, hard chromium
      plating. Rubber pad roller after balance correction
      ② .The rubber pad is made of high quality rubber with convenient
      installation, and the service life is long and can be cut 4 million to 6
      million times.
      ③ .Mechanical control of the position of the left, right. rubber pad of the
      movement distance of the 40mm. this structure makes the rubber
      sleeve the same wear, thereby increasing the use of time
      ④ .Automatic pneumatic rubber pad roller control device and board
      feeding system synchronous. (when the board is transported, the rubber pad roll down, cut cardboard, when feeding is stopped, the
      rubber pad roller will rise, separated from the mold.)
      ⑤ .Speed compensation device is unique, can make rubber roller rolling operation and die, no matter how the rubber pad diameter change, the surface velocity of rubber pad completely controlled by the mould.This can make the carton board shape is equal to the absolute pattern of a mold.
    • There is a rubber pad repair device, can be used after the repair of the rubber pad.
    • Die cutting roller
      ① . After balance correction, die roll steel material, surface grinding, hard chromium plating.
    • Clockwise and anticlockwise to adjust the die cutting
      device.
      ① .Adopt planetary gear structure adjust the clockwise and anticlockwise phase
    • transmission gear
      ⑴ .All transmission gears adopt high quality alloy steel
      20CrMnTi after heat refining, high frequency quenching
      and high precision grinding gear.
      ⑵ .The hardness of the gears. HRC58, long time using, low noise, high precision of production.
      ⑶ .Gear adopts automatic cycle lubrication
