    Corrugated Carton Box Making Flexo Die Cutting Printing Machine Fully Automatic

    Ask Lasest Price
    Brand Name : Dahua
    Model Number : GYK1224
    Certification : CE,ISO
    Price : usd 15000 - 90000 per set
    Payment Terms : T/T, L/C, D/P, Western Union, MoneyGram
    Supply Ability : 15 sets per month
    Delivery Time : 35 - 50 days
    • Product Details
    • Company Profile

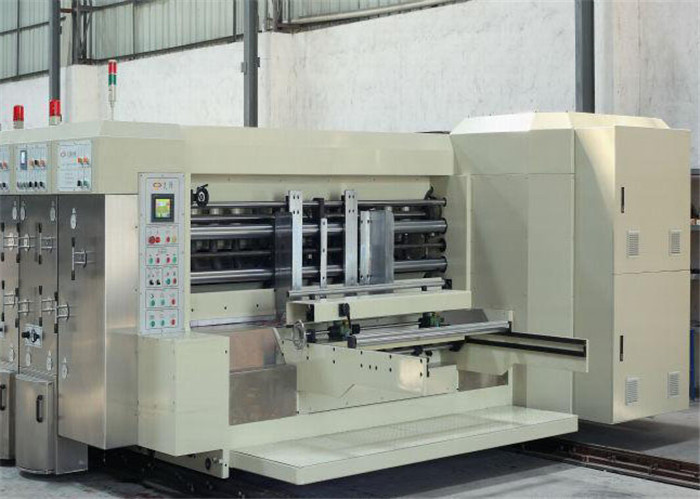

    Corrugated Carton Box Making Flexo Die Cutting Printing Machine Fully Automatic

    Fully Automatic Corrugated Carton Box Making Flexo Die Cutting Printing Machine


    The whole machine is designed according to the high demand, reliability function and safety production.Full-automatic and high speed,PLC controlled.

    Selects the high quality materials and accessories, all the drive rollers adopted high quality steel material of famous brand, hard chrome plating and surface treated by lapping finish.

    Transfer roller impression cylinder, the clearance of anilox roller is controlled by computer.

    Higher configuration series adopt full scale adsorption to make the output better quality.


    MAIN FEATURES:


    a.It adopts centralized computer control and servo independent drive; it can connect to the whole plant ERP management system.
    b.A safety emergency protection switch is set between the operation surface and the unit, and the moving button is prohibited for each unit.
    c.The PLC program controls the servo drive to ensure the stability and reliability of the operating data.
    d.The whole machine has multiple touch screen controls, which can store common orders, and it is more convenient and quick to change orders. Size Information


    Technical Parameters


    parameterunitGYK910×1800GYK1270×2400
    inner widthmm20002600
    max speedsheets/min160160
    max feeding sizemm910×18001270×2400
    min size of feedingmm280×600350×700
    feeding breakmm1100×18001600×2400
    max printing areamm840×16401200×2240
    precision of printingmm±0.75±0.75
    thickness of standard platemm7.27.2
    thickness of board printedmm3-93-9
    min slot spacemm190×50×190×50190×50×190×50
    max depth of slotmm210300
    radial adjustdegree360°360°
    axial adjustmm±10±10
    gross powerkw18.522
    outer sizemm6500×3230×20007500×4500×2400
    total weight of machineabout kg1600020000


    Feeding unit

    NameOriginSpecificationQuantity
    1.main motorHengshui YongSheng

    22kw Variable frequency motor


    1
    2.Moving motorShengBang

    1.5kw 1/120 Geared motor


    1
    3.Back baffledXiaoSen0.18kw 1/30 Geared motor1
    4. Paper suction auxiliary fanHebei7.5kw motor1
    5. Dust removal motorHebei4.0kw1

    Printing unit


    1.other bearingC&U,HRBall
    2. AC contactorChintall
    3.PLCTaiwan Deltaall
    4. Main touch screenWeiluntong10 inch
    5. Group touch screenWeiluntong7 inch
    6. InverterDelta
    7. Keyless connection ringXianyangall
    8. Pneumatic diaphragm pumpJinchangjiangall
    9.Metal anilox rollerDalian tengdaall
    10.Rubber rollerHebeiall
