    120pcs/min Flexo Digital Printing Machine For Corrugated Box Making

    Ask Lasest Price
    Brand Name : Dahua
    Model Number : ZYKM1626
    Certification : ISO,CE,SGS
    Price : usd20000-usd45000
    Payment Terms : T/T, L/C, D/P, Western Union, MoneyGram, D/A
    Supply Ability : 30 Sets per Month
    Delivery Time : 25-40 days
    • Product Details
    • Company Profile

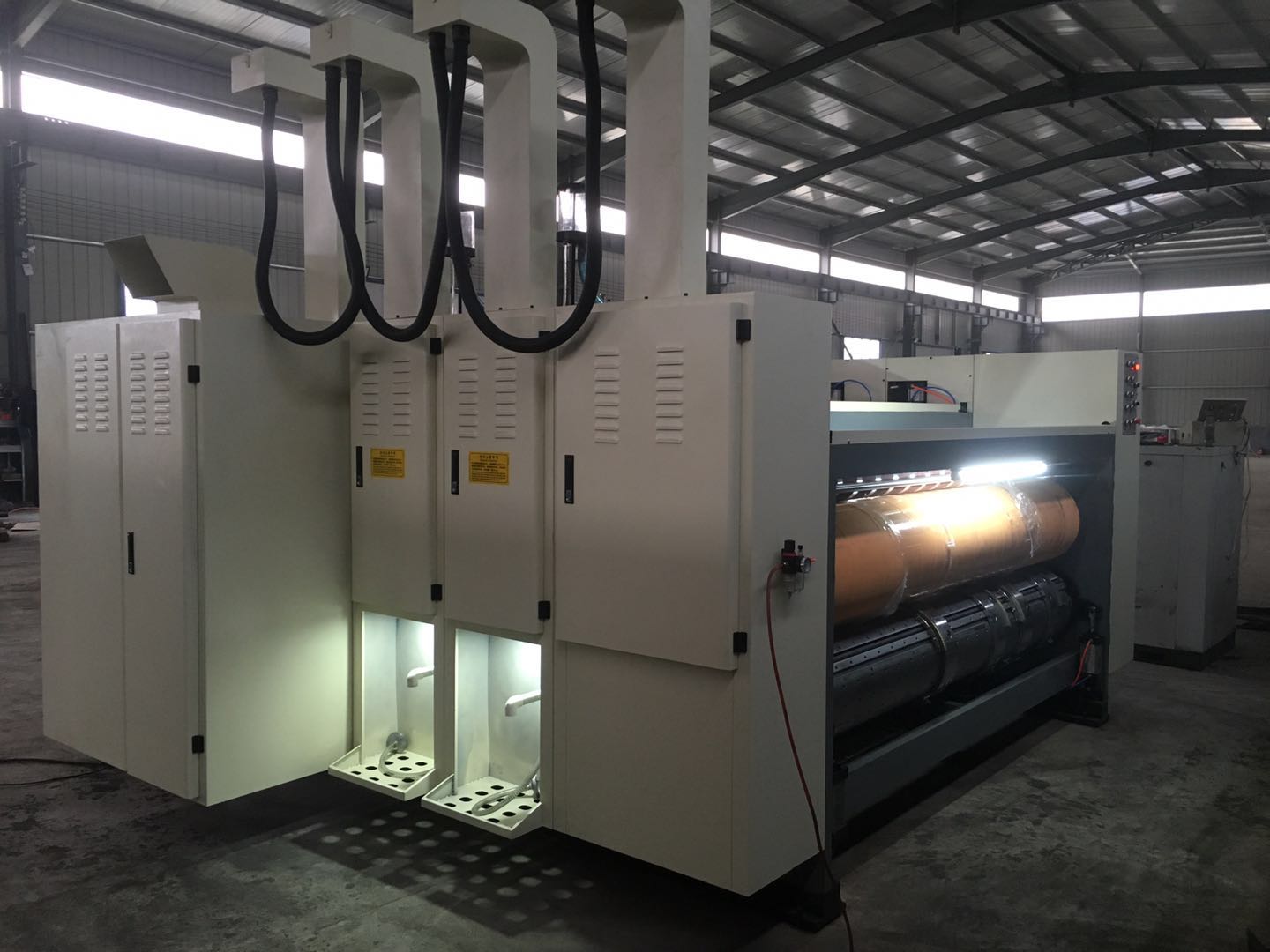

    120pcs/min Flexo Digital Printing Machine For Corrugated Box Making

    Corrugated Cardboard Flexographic digital printing machine for corrugated box making

    1. Individual feeder system ,it is very steady when machine running ,and it is easier to adjust.
    2. Touch screen available ,size input by screen or buttons based on operator needs.
    3. Four lines rubber wheels for feeding, it is fit for big size cardboard.
    4. Brush device is available ,which can clean the cardboard before printing.
    5. Four rollers for feeding, two of them is rubber material which can keep the flute in good shape, not destroyed .
    6. Delta converter and PLC ,touch screen operation .
    7. Schneider contactor/ electric
    8. Main bearing use NSK brand.
    9. wall thickness is 50mm
    10. working speed: 120 sheets/minute
    11. it adopts lead edge type feeding with 7.5 kw adsorption motor.
    12. 40Cr material /grinding technology for gears

    parameters


    TypeUnitZYKM1626
    Design speedPcs/min150
    Working speedPcs/min100-120
    Max paper coveragemm1600*2600
    Effective printing areamm1600*2400
    Min finish sizemm450*600
    cardboard thicknessmm2.5-12
    Wall thicknessmm50mm
    Print precisionmm±0.4
    Slot /cutting precisionmm±1
