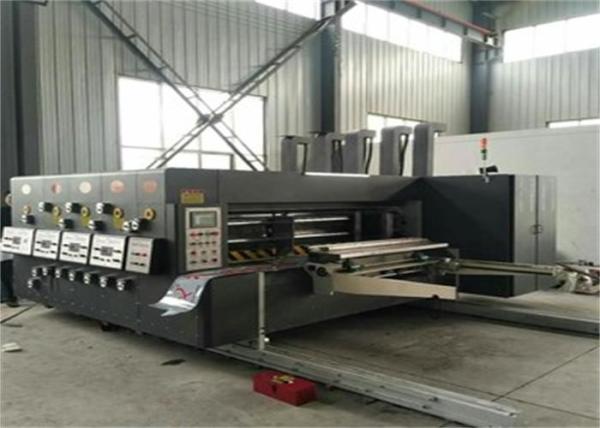

    Vacuum Adsoption Feeder 4 Colors Printer Slotter Die Cutter 100pcs/min

    Ask Lasest Price
    Brand Name : Dahua
    Model Number : ZYKM-1426
    Certification : CE,ISO,SGS
    Price : usd 20000 - 60000 per set
    Payment Terms : T/T, L/C, D/P, Western Union, MoneyGram, D/A
    Supply Ability : 30 sets per month
    Delivery Time : 35-50 days
    • Product Details
    • Company Profile

    Vacuum Adsoption Feeder 4 Colors Printer Slotter Die Cutter 100pcs/min

    Vacuum Adsoption Feeder 4 Colors Printer Slotter Die Cutter Corrugated Box Printing Machine


    Performance and Characteristics

    1.This machine used to make corrugated box, flexo water base ink printing, lower cost
    2. Machine include feeding table, printing unit, slotting unit(option) die-cutting unit(option), it can do printing, slotting,die-cutting one time, save labor.
    3. Lead edge feeder with vacuum feed board, improve work efficiency, variable frequency motor drive adjust speed.
    4. Planet gear phase adjustment by motorized in 360 degree. Working running or stop, fast and accurately.
    5. Machine units move by motorized and locked by pneumatic
    6.Rollers do chrome plated and polished
    7. Cross head slide used in main gear, gear gap not change when roll adjusting, make sure high appreciate.
    8.Main gear made from 45# carbon steel with high frequency quenching, key free connecting ring feature in reduce wear, long printing registering.
    9.Wall is 40mm cast iron with heat treatment, good performance, non-defrmation.
    10. Transmission part adopt spray lubrication
    11.Machine units move by motorized, the alarm sounds when units are shifting to secure the operators safety
    12.The counter for control production quantity

    Technical Parameter

    Model

    ZYKM-1226

    ZYKM-1426

    Machine inside width
    2600mm

    2600mm

    Paper coverage area
    1200×2400
    1450×2600
    Effective printing area
    1200*2300

    1450*2300

    Min paper coverage area
    400×500mm
    400×500mm
    Standard Thickness of printing plate
    6mm
    6mm
    Working speed
    about 80-100 sheets/min
    about 80-100 sheets/min
    Printing precision
    ±0.5mm
    ±0.5mm
    Thickness of cardboard
    1.2-9mm
    1.2-9mm
    Main power
    7.5-11KW
    7.5-11 KW
