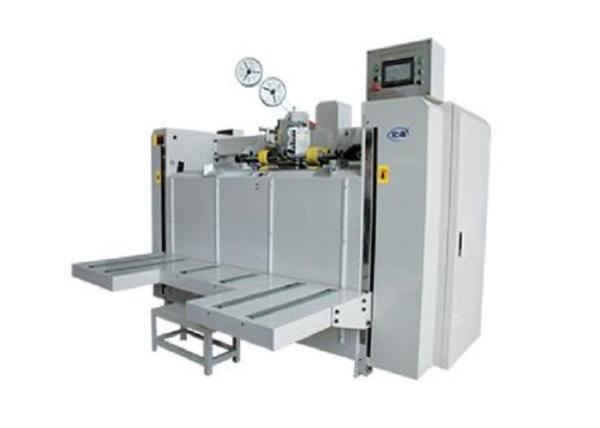

    Semi Auto Corrugated Box Stitching Machine Paper Carton Making Machine

    Ask Lasest Price
    Brand Name : Dahua
    Model Number : BDJ-2000
    Certification : CE,ISO,SGS
    Price : usd9000 - 25000 per set
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P
    Supply Ability : 80 sets / month
    Delivery Time : 20 -30 days
    • Product Details
    • Company Profile

    Semi Auto Corrugated Box Stitching Machine Paper Carton Making Machine

    Corrugated Carton Box Stapler Stitching Machine Semi Auto Type Paper Carton Making Machine

    1. The transform carton size and adjusting nail carton from just one minute can be completed,greatly saves time and is convenient to operate.
    2. Forward and backward two-way baffle,Applicable to cover carton and no cover carton.
    3. The front end to send automatic counting paper,paper feeding platform is provided with the photoelectric induction device,automatic rising feeder.
    4. The following section has the function of automatic counting,finished cartons can be set according to the number(2-99)sub stack sent to the conveying machinery terminal,convenient bundling.
    5. The machine speed:600nails per minute.
    6. The nail spacing:30-120mm adjustable.
    7. The paper pressing wheel gap electric adjustment.
    8. The working table lifting effective height:900mm.
    9. The machine covers an area of size:host 2.8*2.7*2meters.
    10. The machine weight:2T
    11. The whole order adjustment,canstore 100 orders.
    12. The whole machine electrical isolation transformer protection device
    13. Automatic wire feed system,no alarm,20kg grail flat wire,to save time.
    14. The machine feed gap adjustment has applied for national patent,patent mnmber:201320093236.5

    MAX(A+B)X23400mmMIN length A250 mm
    MIN(A+B)X2680mmMAX height D2000 mm
    MAX(C+D+C)2500mmMIN length D150 mm
    MIN(C+D+C)250mmMAX width of the tongue E40 mm
    MIN rock cover C50mmMAX width of the tongue E900 mm
    MAX rock cover C560 mmWidth2800mm
    MAX width B760 mmWeight(T)2
    MIN width B150 mmSpeed600
    MAX length A1140mmNumber of Stitching1-99
