Automatic Creasing Platen Die Cutting Punching Machine For
Corrugated Carton Box

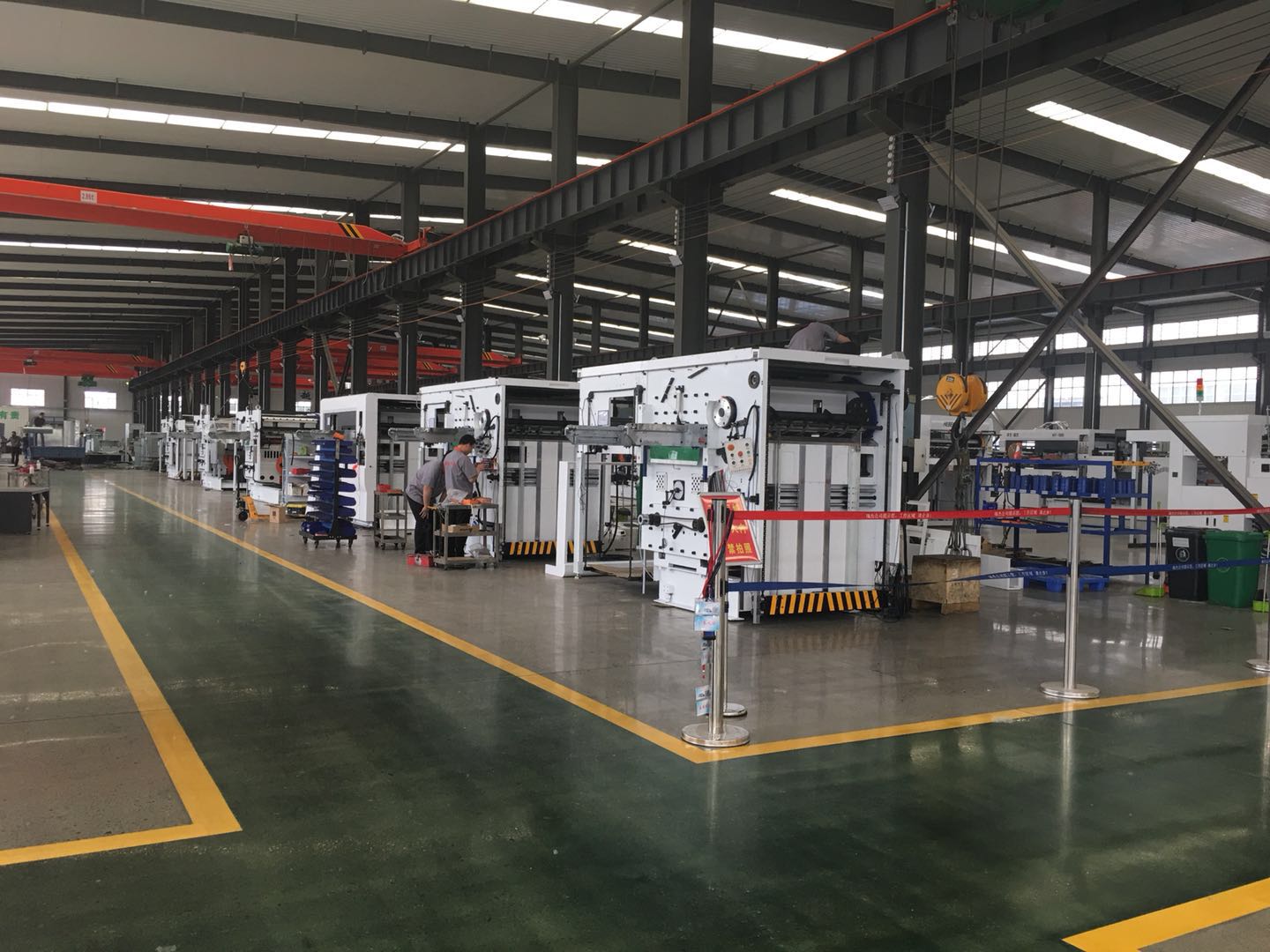

The MY-1500 Automatic Die Cutting and Creasing Machine is the main
equipment for making high-grade color box, plug and different
shapes of ink cartons.
The machine adopts Anchuan servo system, Gogol four axes motion
controller, non-pressure feeding system, high strength gripper
teeth row, whole swing front guide, automatic pushing guide, high
precision interval structure, pneumatic locking plate. Pneumatic
clutch, overload protector, automatic paper collecting, makes our
machine has a short paper feeding distance, positioning correctly,
paper collecting in order, can also do non-gripper die cutting.
Computer control makes the whole machine running automatically,
man-machine interface display the working condition and trouble
dealing method. Key components, control systems and fasteners are
imported and carefully assembled to ensure the safety and
reliability of the machine. With many sensors and protection
devices to ensure machine working and workers safety.
Die cutting pressure can overall regulating and can also front
gripper edge regulating separately, manual reducer is convenient
and labor saving.
Grippers: The grippes are made of high strength of hard aluminum alloy
precision casting, with good rigidity, light material, small
inertia, high strength, can accurately and smoothly transfer paper
in high speed running. Unique gripper front guide, die cutting
double positioning and running curve of cam, low noise, high
precision and last durable, gripper edge is only 6 mm.
Die cutting sheet frame: The double reinforcement of die cutting sheet frame adopts
pneumatic locking and rolling bearing guide rail, high safety, easy
operation.Hard aluminum alloy floating plate, die cutting sheet
frame with hanger plate, makes a plate positioning exactly and
strong, and can be reuse, can effectively prevent the die-cutting
plate prolapsing and breakaway.
Die cutting steel plate: The 70CR steel plate processed by special heat treatment, good
flatness, high hardness, long service life. Personalized air
cushion smoke edition system makes the steel plate pushing in and
out, easy and labor-saving.
Transmission structure: New transmission design makes the high speed precision die
cutting. The main drive adopts worm gear and specialized designed
crankshaft connecting rod structure, the bearing bush connection
will reduce the movement space, avoid the impacting of worm gear
and worm, high die-cutting pressure, have the function of high
pressure. The 4 corners of moving platform is equipped with
decompression buffer spring and reduce machine wearing, makes the
machine running more steady.
Host bottom platform, moving platform and the upper platform: These key components made of high strength ductile iron resin sand
casting, high tensile strength and good toughness.
Intermittent structure: Using high precision parallel ternary cam indexing structure, cam
curve is special designed, big traverse angle, take the gripper
running more steady.
Pneumatic clutch brake: Control transmitting torque by adjusting the air pressure, low
noise, good braking performance. Automatic off the machine when the
machine overload protection to avoid the accident happening.
| Item | Parameters |
| Model | MY-1500 |
| Die cutting type | Pressed flat die cutting(Lower side is movable while upper side is
unmovable) |
| Max paper transmitting size | 1510*1120mm |
| Min paper transmitting size | 400*550mm |
| Max die cutting size | 1490*1090mm |
| Min gripper size | 6mm |
| Max die cutting pressure | 350N/cm² |
| Paper processed | Corrugated board ≦8mm |
| Die cutting precision | ±0.1mm |
| Max die cutting speed | 4800 sheets/h |
| Max feeding pile height | 1250mm(above the level) |
| Min feeding pile height | 1100mm(above the level) |
| Main motor power | 11 kw |
| Total power | 22 kw |
| Total weight | 23.5 T |
| Overall size | 6500*2200*2250mm (Not including the pedal) |
